Technological process:

Uncoiler — feed guiding — roll forming — welding device — Scraping scar device — sizing devicce — correction device — flying cutting system — cooling device — purge system — out table

Main parameters for the machine

4.2.1 rolling material: Aluminum

4.2.2 forming type: the aluminum was rolled by rollers,the machine driving by gear box.

4.2.3 installed capacity:≤150KVA

4.2.4 driving way:  Servo synchronization transmission

4.2.5 forming speed: 30-150M/Min

Operation:

—Extrusion device, free of adjustment ,no need to replace bearing

—aluminium bar can be packed directly

—small space requirement, no need drying space

—Labor cost saving(3 workers are saved compared with traditional line which needs extra one person collect and two persons lift material)

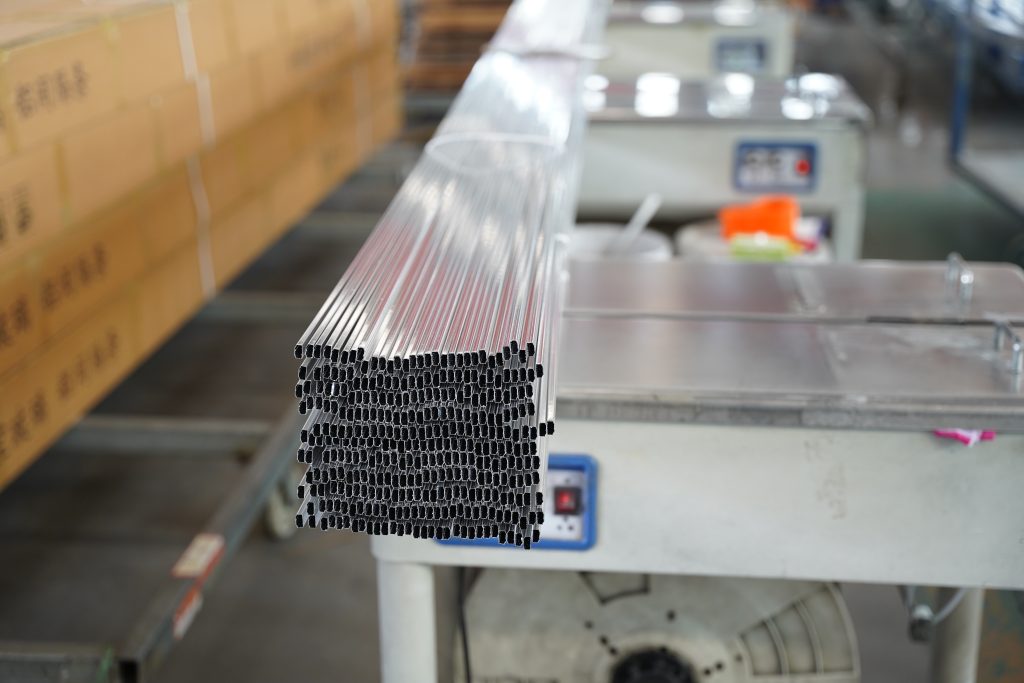

Final aluminum spacer bar specification and data:
